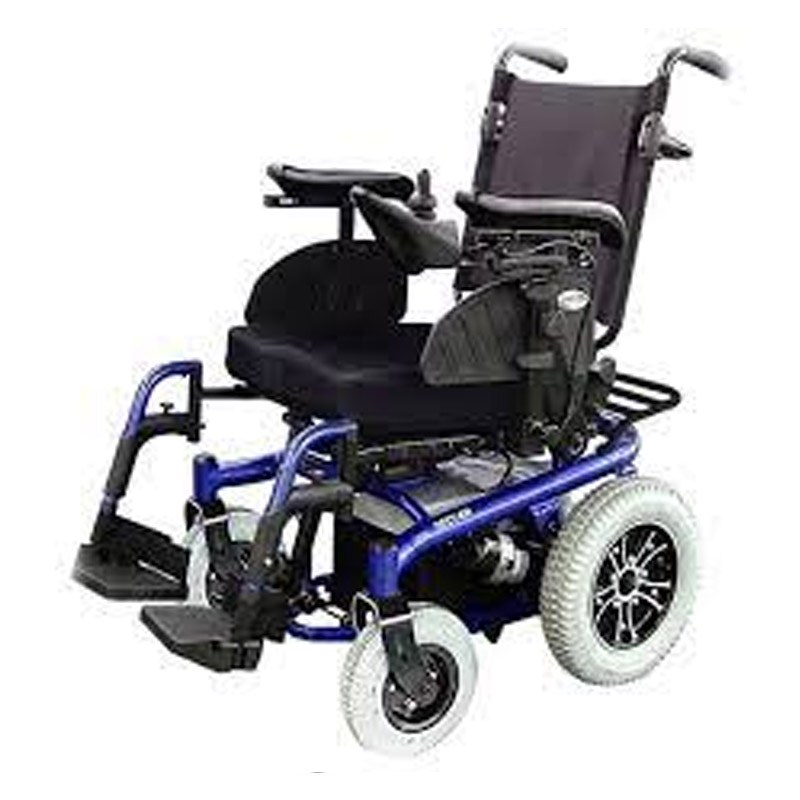

Rehab Power Wheelchair The HS-7200 T/R (tilt & recline) is a rigid, motorized powered rear wheel drive
wheelchair with powerful motors, mega-sized batteries, tilt and recline functions, and added suspension.
Features of the Rehab Power Wheelchair
Maximum Speed: 8 kmph
Weight Capacity: 162 kg
Manual Tilting
Height Adjustable / Flip-Up Armrest Swing-Away Joystick
Standard 75 Ah Batteries and Easily Accessible Design
Optional Lighting System
Specifications
Model Number HS-7200T Overall Length 1080 mm Overall Width 670 mm Overall, Height is 1030 mm Wheels: Front 230 mm Wheels: Middle N/A Wheels: Rear 360 mm / 14" Weight w/ Batteries 117.06 kg Max. Speed Eight kmph Weight Capacity 162 kg Ground Clearance 110 mm Grade Climbable 8 degree Curb Climbing 20 mm / 0.8" Turning Radius 920 mm / 36.2" Brake Electro-Mechanical Seat Width 16" or 18" Seat Back Angle 100 ~ 140 degree Seat Back Height 520 mm / 20.5" Seat Tilting Angle 0 ~ 17 degree Seat Elevating Angle N/A Drive Train 2-Motor Rear-Wheel Drive Battery Weight 55 kg Motor Size 20 W 4600 r.p.m. Travel Range 48 km Battery (2) 12V. 75Ah Charger 8A Off Board Electronics Dynamic SHARK Seat Type Padded, Breathable Ballistic Nylon Back Rest
Do not try to fix or replace any wheelchair part if you don’t feel comfortable doing it.
Make plans to have your electric/Power serviced once a year!
